Solar module passive cooling with lapping fins

Malaysian researchers have proposed a new passive technology for solar module cooling based on fin heat sinks. The tech ensures lower PV system payback times and reduces operating module temperatures by up to 26 C.

Researchers from Universiti Kebangsaan Malaysia have developed a new passive technology to keep solar panels cool. They claim their new tech can reduce operating temperatures by up to 26 C.

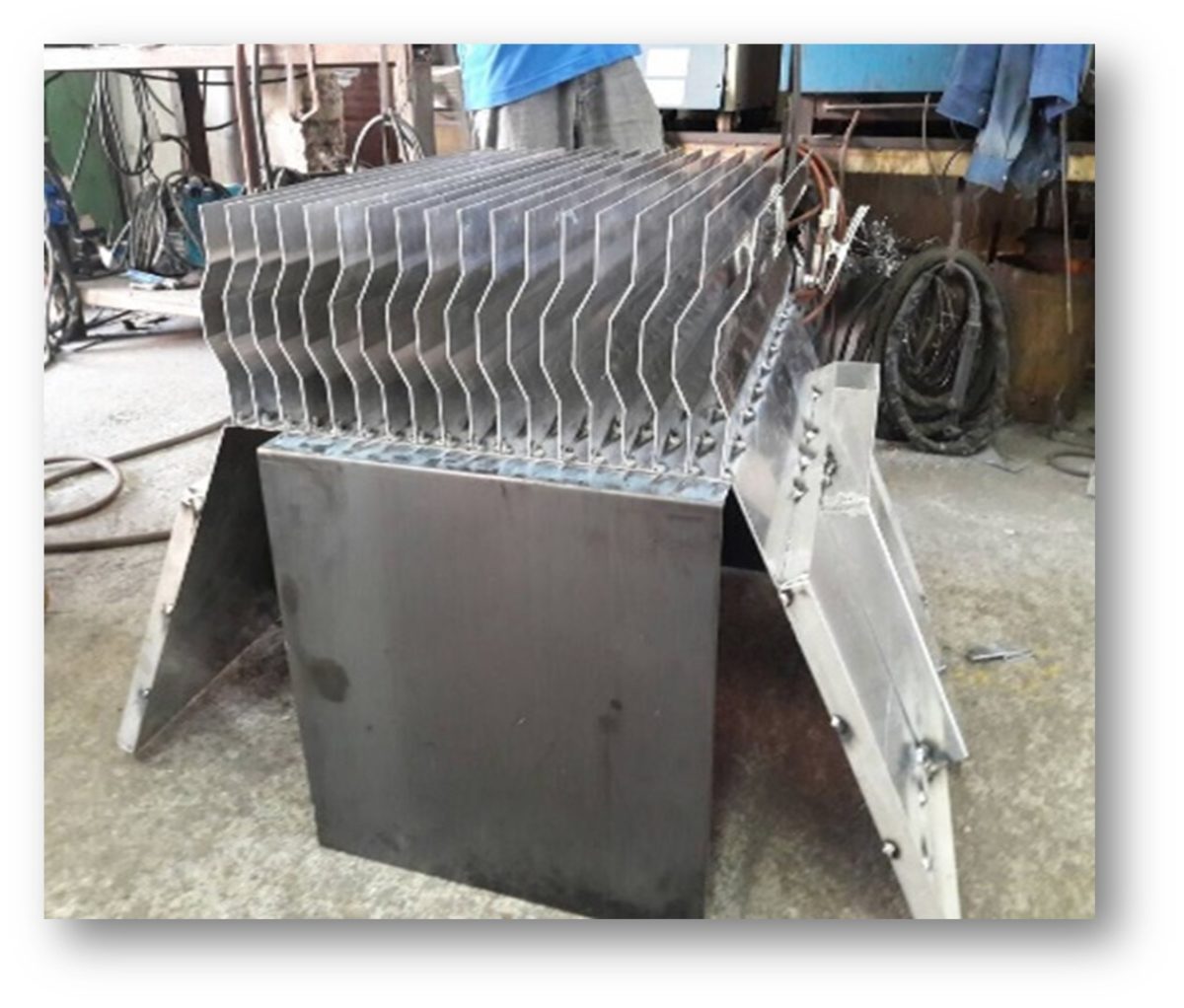

The system is based on the use of fin heat sinks and is designed in two configurations, with lapping and longitudinal fins. The scientists tested it with three different 40 W PV modules installed at a tilt angle of 14 degrees. Two of the modules were equipped with two different cooling techniques and a third module was used as a reference panel without cooling.

For both systems, the optimum fin height was 200 mm. A planar reflector was also used to increase the solar irradiance, which in turn raised the solar panel temperature.

The researchers collected data with a data logger and an I-V tracer. They also used a pyranometer and thermocouples to validate the numerical simulation. “Output power was logged at an interval of every one minute,” they said. “The data of the current-voltage, the output power and PV module temperature were simultaneously recorded.”

The measurements helped the researchers to understand that the ideal number of fins for lapping and longitudinal fin heat sinks are 18 and 15, respectively. The first of the two configurations was the most efficient in cooling down the module.

“Passive cooling with lapping fins demonstrate the best performance with mean PV module temperature 24.6 C lower than the reference PV module, with the achieved electrical efficiency and power output are as high as 10.68% and 37.1 W,” they said.

The electrical efficiency was 10.7% for the second configuration, while output power reached 30.65 W. “Under the same experimental conditions, the temperature achieved by the PV module with longitudinal and lapping fins heat sink are 23.8% and 35.3% respectively lower compared to the bare PV module temperature without cooling,” the scientists said.

They also conducted a life cycle cost analysis (LCCA) of the two cooling techniques. The reference module without cooling was the most efficient and also the cheapest, with an overall PV module payback time of 4.2 years, compared to five years for longitudinal fins. The payback time for the PV module without cooling came in at 8.4 years.

“Therefore, cooling PV module using passive technique particularly with lapping fins design is concluded as the preferred option over longitudinal fins design due to its simplicity and low-cost,” the scientists concluded.
