Scientists gain an atom-level view into perovskite cell efficiency

Scientists gain an atom-level view into perovskite cell efficiency

Using Department of Energy laboratories, scientists learned at the atomic level that a liquid-like motion in perovskites may explain how they efficiently produce electric currents.

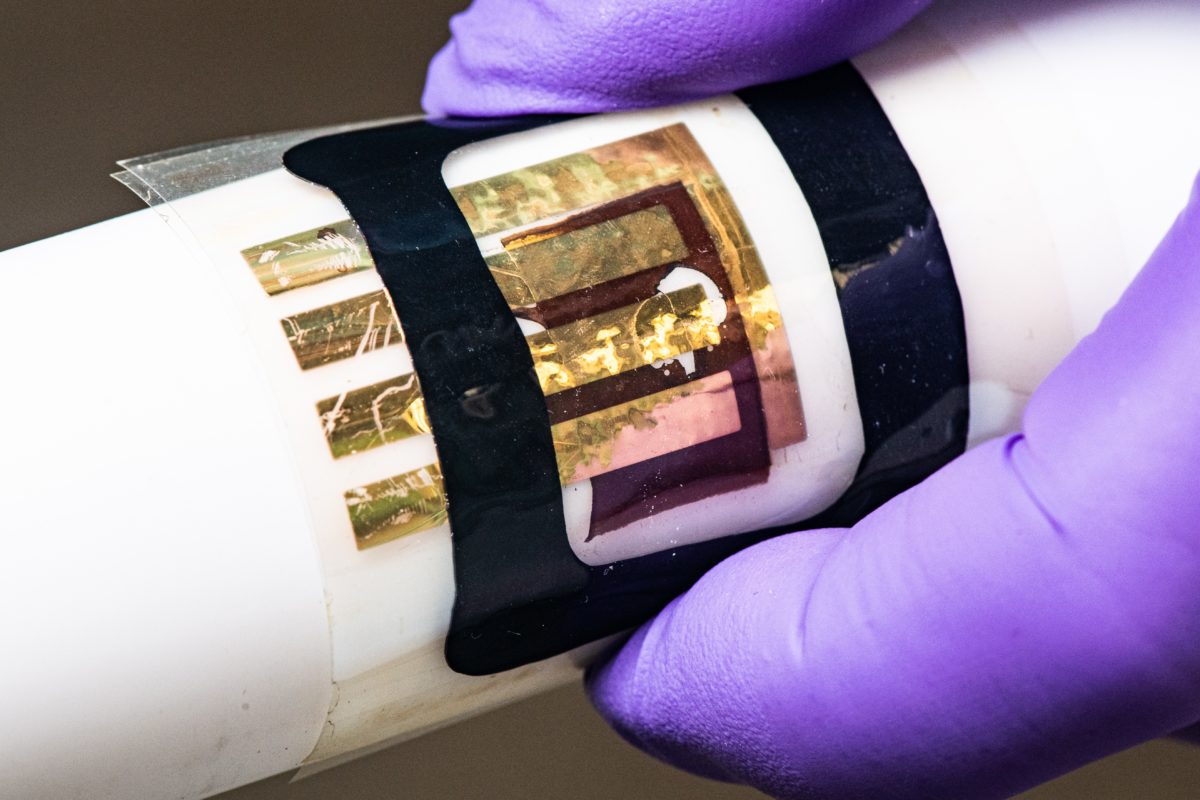

September 02, 2020 – NREL researchers David Moore and Axel Palmstrom have engineered a Dimethylammonium-containing Wide-Bandgap Perovskite, flexible solar cell at NREL. Their work has been nominated for an R&D100award.(Photo by Dennis Schroeder / NREL)

A team of scientists studied the inner workings of a perovskite material to better understand the material’s behavior at the atomic scale. Their work revealed that a liquid-like motion in perovskites may explain how they efficiently produce electric currents.

The scientists explained that when light hits a photovoltaic material, it excites electrons, prompting them to “pop out” of their atoms and move through the material, conducting electricity. One problem is that the excited electrons can recombine with the atoms instead of traveling through the material. This can cut the amount of electricity produced relative to the amount of sunlight that hits the material.

Perovskites do well at preventing this recombination, the scientists said. Their work aimed to uncover what mechanism causes this and how more efficient solar cells can be developed.

Duke University led the effort that included scientists at the U.S. Department of Energy’s Argonne National Laboratory and Oak Ridge National Laboratory.

The team studied one of the simplest perovskites, a compound of cesium, lead and bromine (CsPbBr3). They then used X-ray scattering capabilities at Argonne’s Magnetic Materials group’s beamline.

The team captured the average positions of the atoms in a perovskite crystal at different temperatures. They found that each lead atom and its surrounding cage of bromine atoms formed rigid units that behaved like molecules. In particular, the units oscillated in a liquid-like manner.

One theory to explain how perovskites resist recombination is that these distortions in the lattice, or crystal structure, followed the free electrons as they traversed the material. The electrons might deform the lattice, causing the liquid-like disturbances, which prevented them from falling back into their host atoms. The researchers said this theory may offer new insights into how to design optimal perovskite materials for solar cells.

Data from diffuse scattering measured with X-rays at Argonne’s Advanced Photon Source (top half) and neutrons at the Spallation Neutron Source at Oak Ridge. Two-dimensional fluctuations grow as the temperature is raised from 60°C (left) to 160°C (right).Image: Argonne National Laboratory

The data also indicated that molecules in the material oscillated within two-dimensional planes, with no motion across planes. This two-dimensional nature could also help explain how the perovskite can prevent electron recombination, contributing to the materials’ efficiency.

To investigate the motion of the atoms directly, the team used neutron scattering capabilities at Oak Ridge National Laboratory. Neutron scattering confirmed the pattern seen in the X-ray scattering experiment. It also showed that it took almost no energy for the molecules to oscillate in two dimensions. The researchers said this helps to explain why the excited electrons could deform the lattice so easily.

A paper on the study, “Two-dimensional overdamped fluctuations of the soft perovskite lattice in CsPbBr3,” was published in Nature Materials in March. Computational studies to support the experiment were performed at the National Energy Research Scientific Computing Center at Berkeley National Laboratory. The research was funded by DOE’s Office of Basic Energy Sciences, Materials Science and Engineering division.

From: https://pv-magazine-usa.com/2021/05/19/scientists-gain-an-atom-level-view-into-perovskite-cell-efficiency/
